Sprite Sheet Animation

In this Tutorial we want to create a Unity Sprite Sheet Animation for a given Sprite Sheet.

Prequisite:
– We use the newest Unity Version (5.1.3f1) (but it should work with every Unity Version after 4.x)
– Download the Spritesheet “Blocky” from http://opengameart.org/content/blocky
We will use the “blocky_walkright.png” sheet.

1. Start Unity
Start Unity and Create a new 2D Project.
Now you should see your empty Scene with a “Main Camera” Object inside it (Standard Scene).

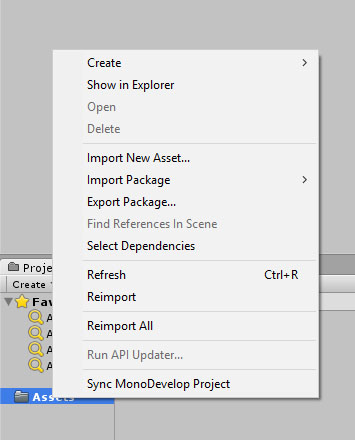

Now in your Project Tab right click “Assets” and select “Import New Asset” and choose your block_walkright sheet.

importasset
Now select and highlight your blocky asset – you should now see the following on the right.

spritemulti

Change the Sprite Mode from “Single” to “Multiple” and change the Filter Mode to “Point” (so anti aliasing will be disabled – useful for pixelart games).

Hit “Apply” and changes will be saved.
Next in the same windows just open “Sprite Editor”.

slice_sprite

Okay now comes the awesome part of this engine which i really love 🙂
Click on “Slice” on the top left and a new menu appear. Just change the method to “Smart” (this is not necessary but why not ?) and hit “slice”.
You now see lines that display the slices – and this fully automatically.

How cool is this ? Okay now hit “Apply” to finally save this setting.

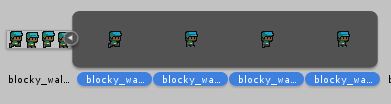

In the bottom in your Asset Tab you can now select each frame from the sprite .
splittet_sprite

Now select all frames and drag them to your scene.
select_animation

Voila – Unity automatically creates a animation for your.
If you now hit the “Play” Button your should see the Sprite Animation running.

This was the basic for Sprite Animation in Unity – i hope you liked it.
